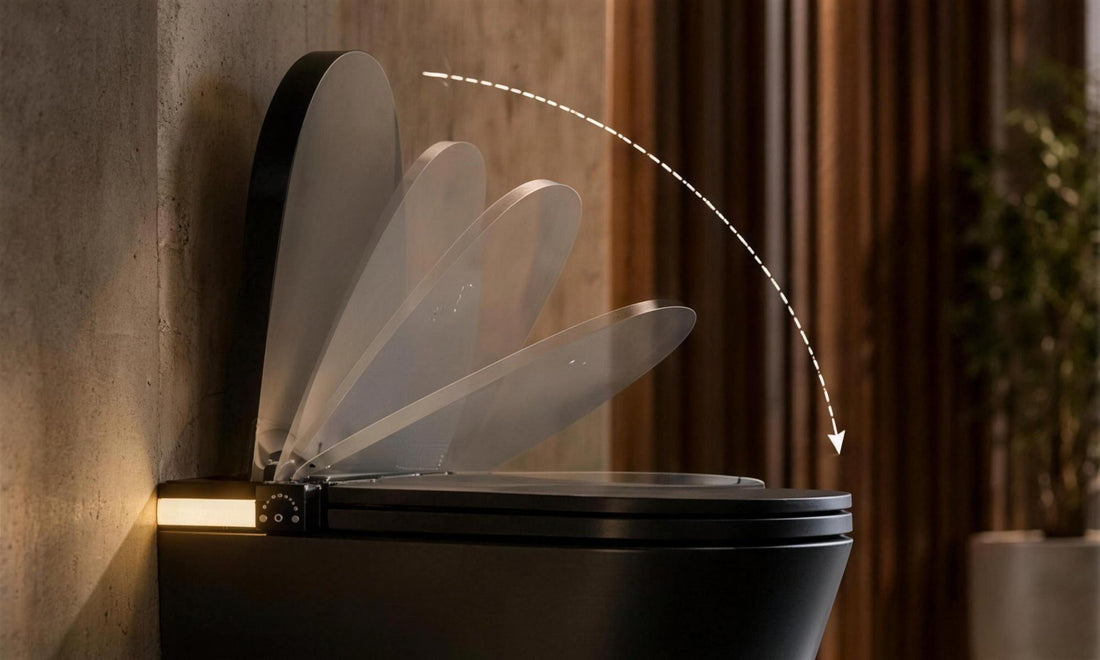

01 / Effortless arrival
It knows you’re there.
The lid lifts as you approach and closes gently as you leave, so you never need to touch it.
Introducing the darker side
Obscur
Beautifully bold.
A black wall-hung smart toilet that brings quiet confidence to bold interiors. Sculptural, considered, and designed to make every detail feel effortless.
£2,495.00

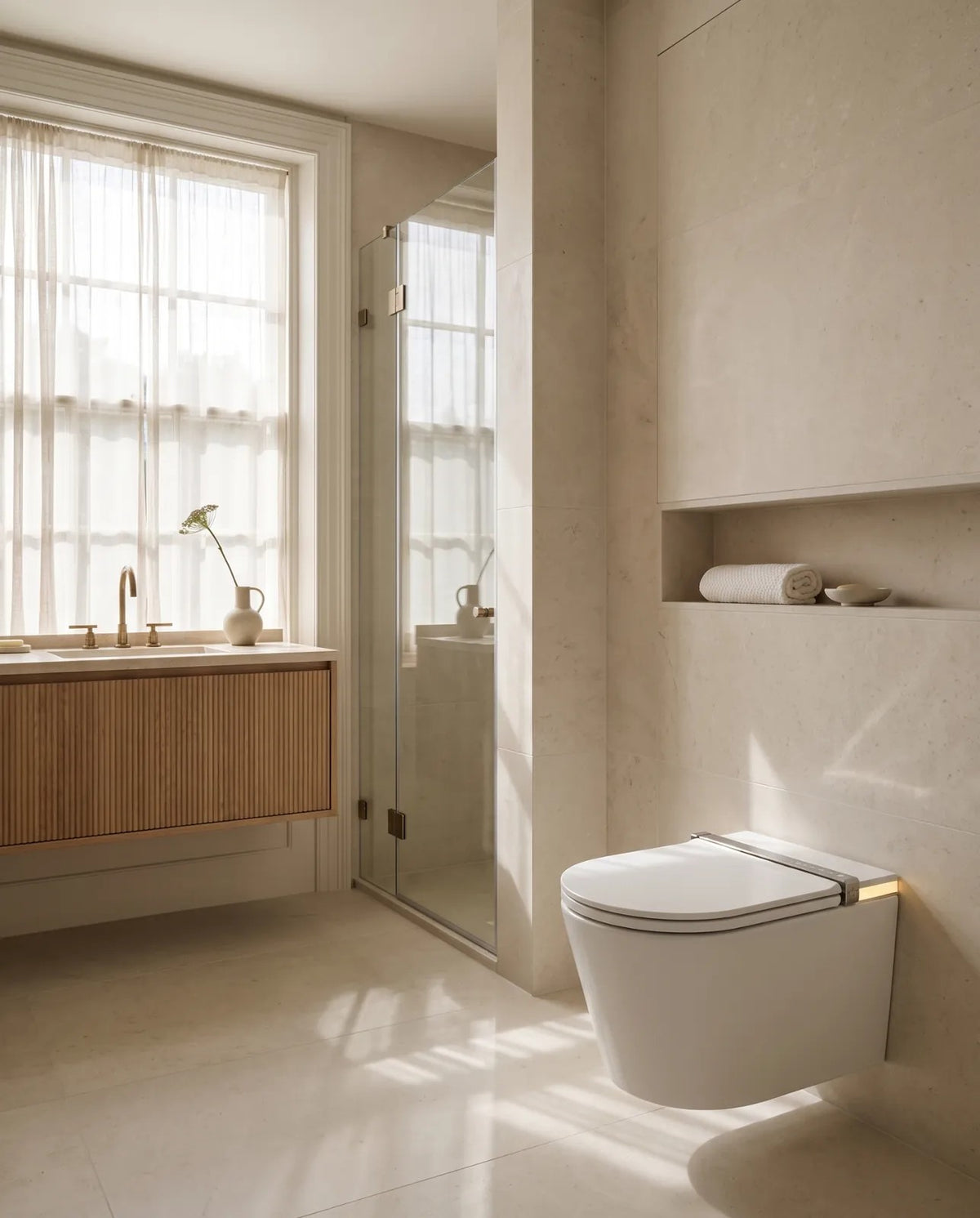

The Clair / Obscur duoFinish
Frame includedSteel wall frame & fixings — in the box
550·355·385 mmOverall size — depth, height and width
No cisternWater tank built within ceramic — works at low pressure
Free UK mainland delivery — arriving early November, then kerbside by pallet
Lifetime ceramic guarantee, plus 2 years on parts and electronics
30-day returns · track your order any time
Secure checkout
Not sure it'll fit your bathroom?
Send Jason a photo on WhatsApp — Tresani's in-house plumber — and he'll check it fits, or answer any other question before you order.
Or check it fits in 2 minutes
Fit at a glance
Will Obscur fit?Here's what it needs.
The essentials for planning with your installer. Every figure below is for Obscur.
Side elevation · mm
- 550mm
- From the wallMeasured from the finished wall
- 560mm
- Seat height, at mostSet when the frame goes in
- 400×40mm
- Frame suppliedFits a stud or boxed-in wall
- P-trap
- Waste through the wallHorizontal outlet, not the floor
You'll also need
- A fused spur, fitted by a qualified electrician, within reach of the 1.5 m cable
- A nearby water supply. The tank is built in and works at low water pressure
- Two people on delivery day. It arrives kerbside on a pallet, around 50 kg
A planning guide, not an installation approval. Final fit depends on your measurements and the Obscur installation guide.
Obscur
£2,495.00
Another point of view
Make a statement.Without saying a word.
A deeper shade, a sharper presence. Obscur brings the same calm intelligence into spaces that ask for something more striking.
The art of contrast
Designed tostand apart.
Dark ceramic. Architectural form. The space around it becomes part of the composition.
The details are the design
Intentional inevery detail.
A closer look at three expressions of effortless intelligence.
02 / Integrated control

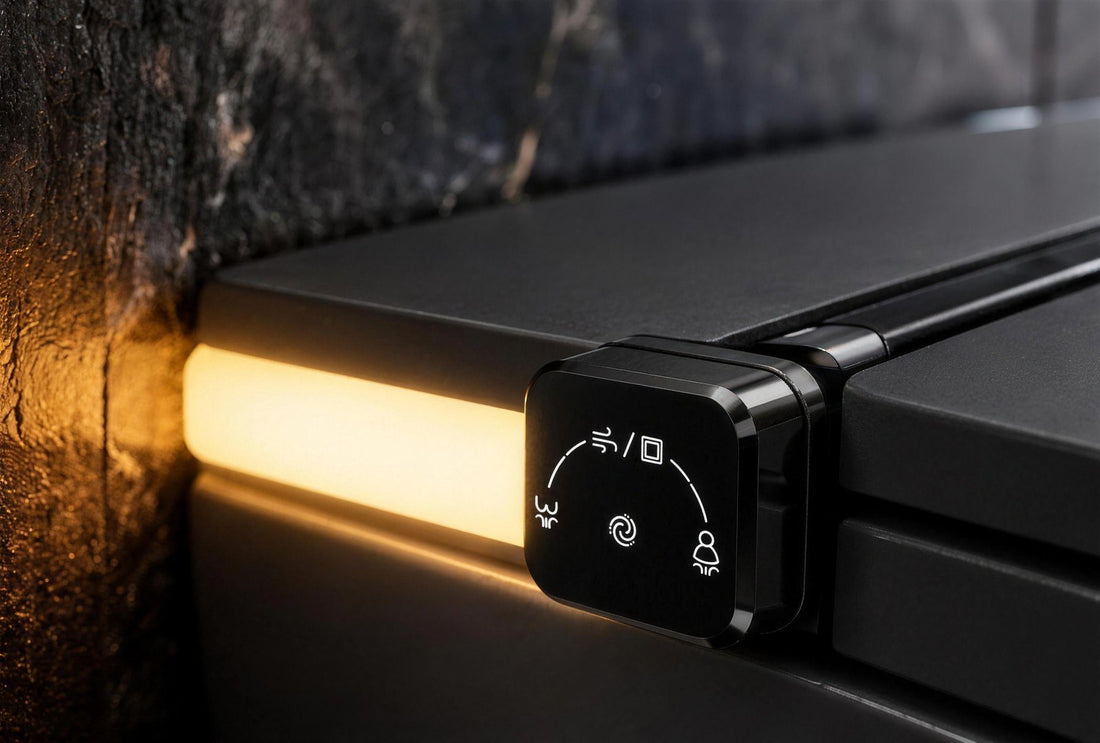

Control, at your fingertips.

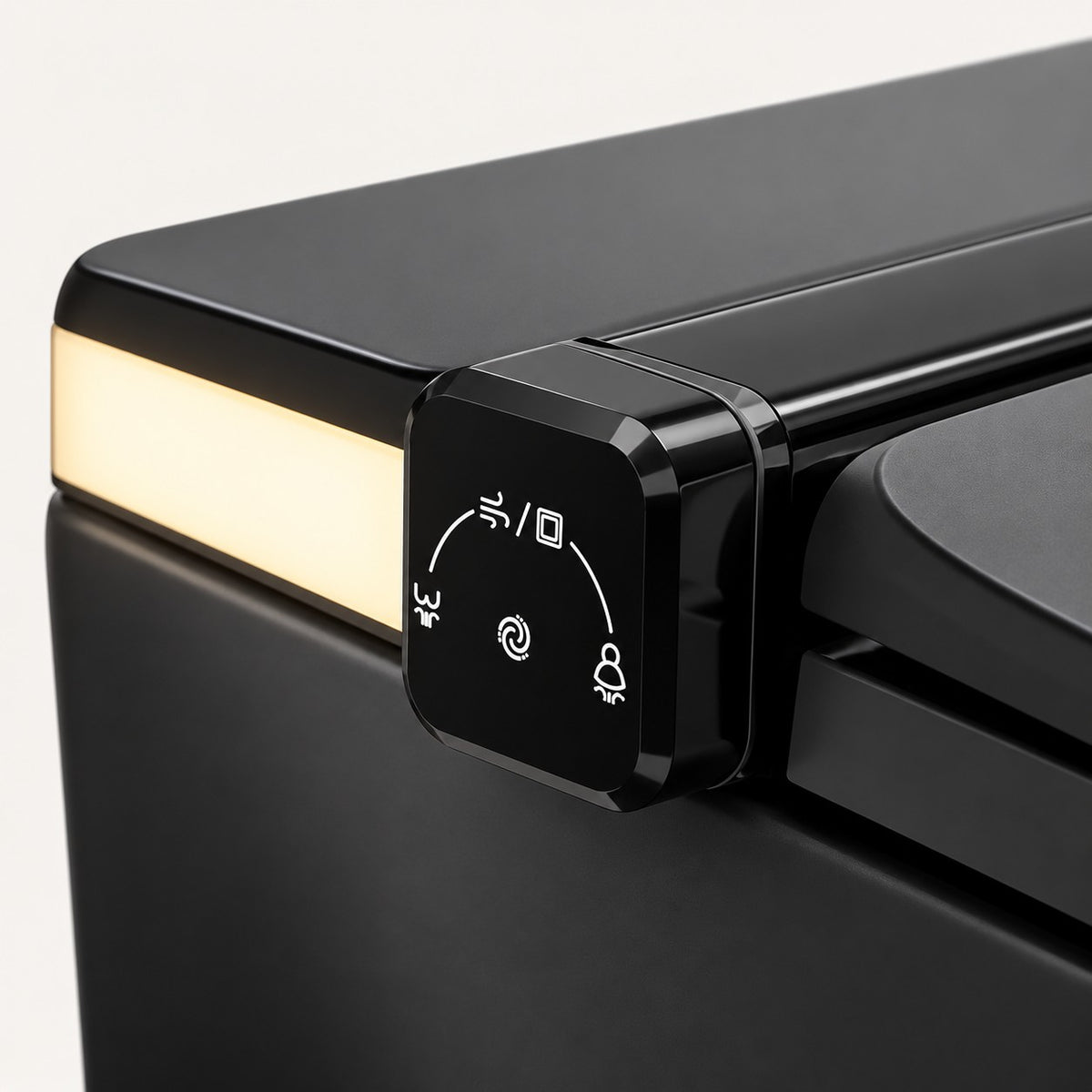

A discreet side dial puts the everyday controls exactly where you expect them.

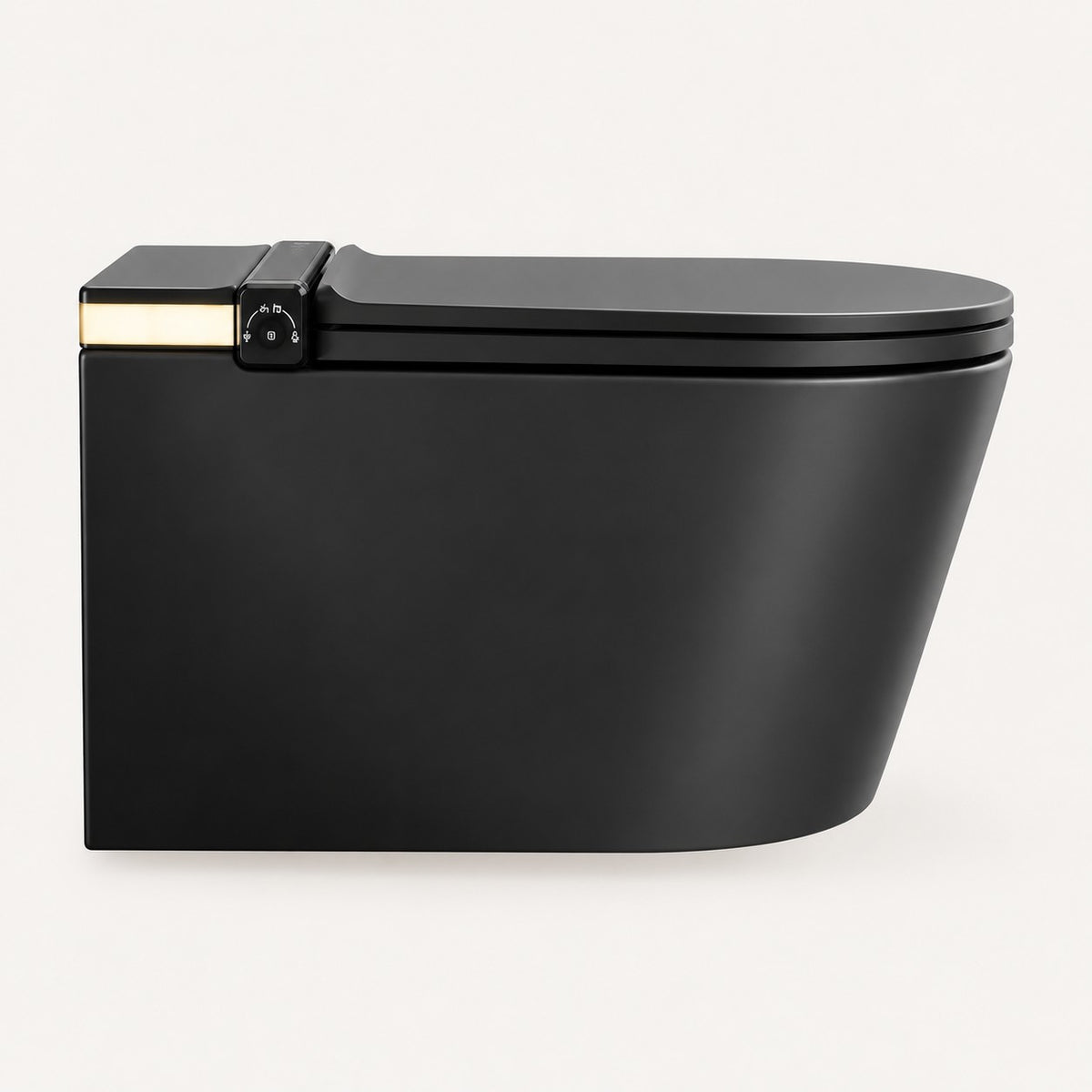

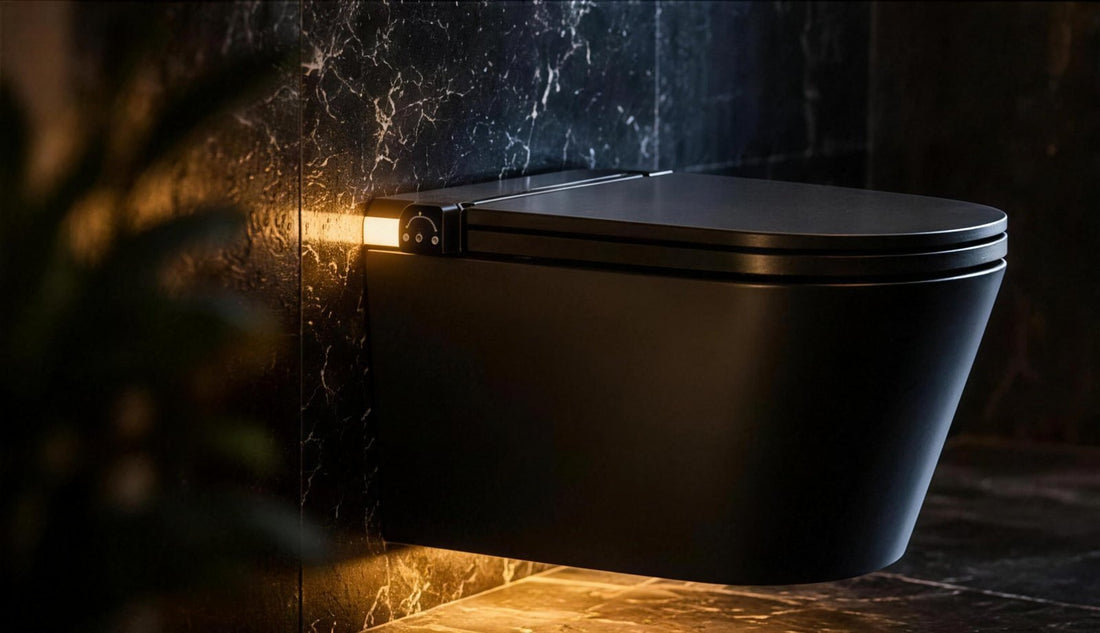

03 / Light as an accent
A glow in the dark.
A warm line of light brings character to the silhouette without overwhelming the room.
Explore Obscur your way
See the detail.Feel the difference.
Explore the design from every angle, then try the functions to see how each one works. A little discovery, entirely on your terms.
PERSPECTIVE VIEW
See it in action.
Choose a function to reveal its demonstration here.
Illustrative preview
PHOTO VIEWS

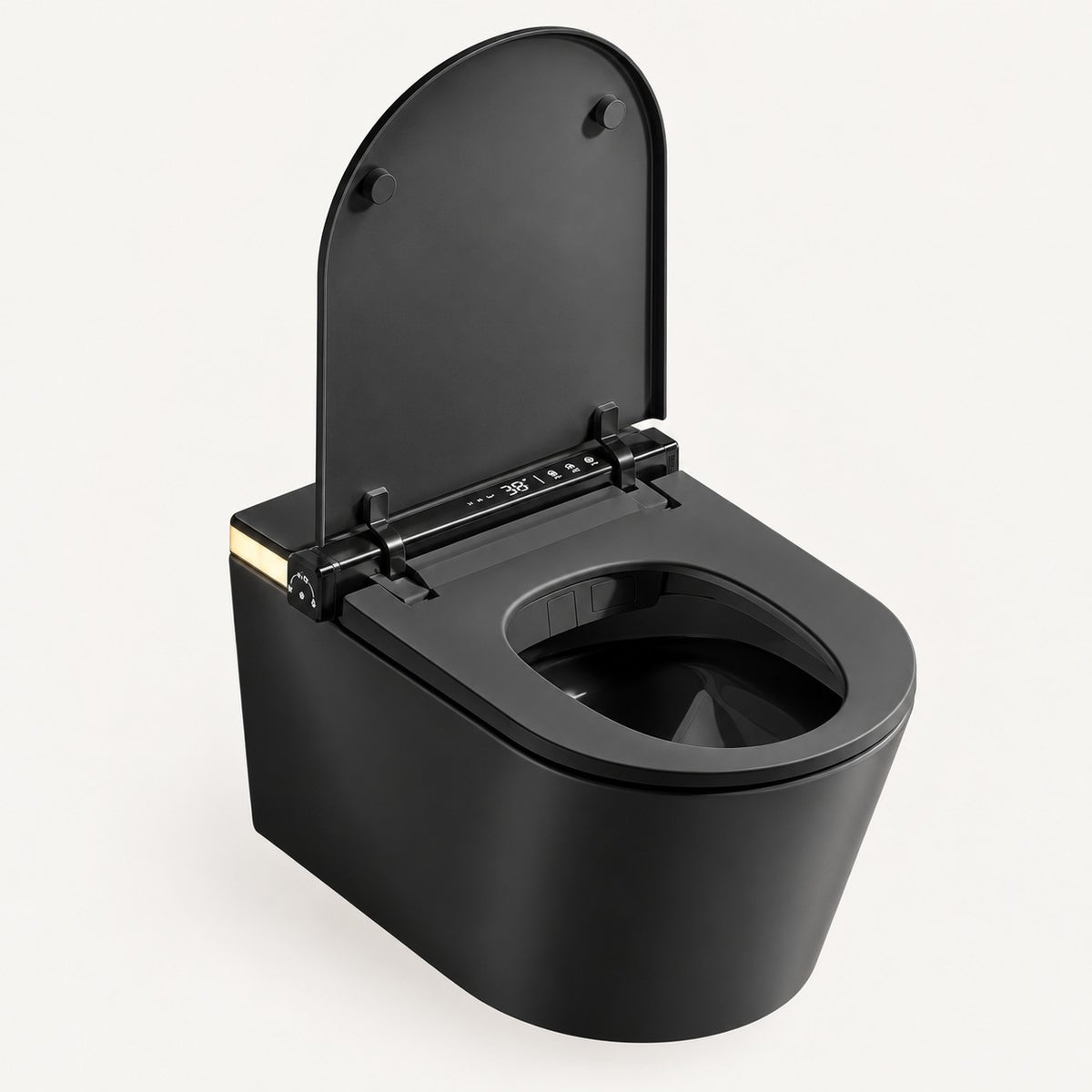

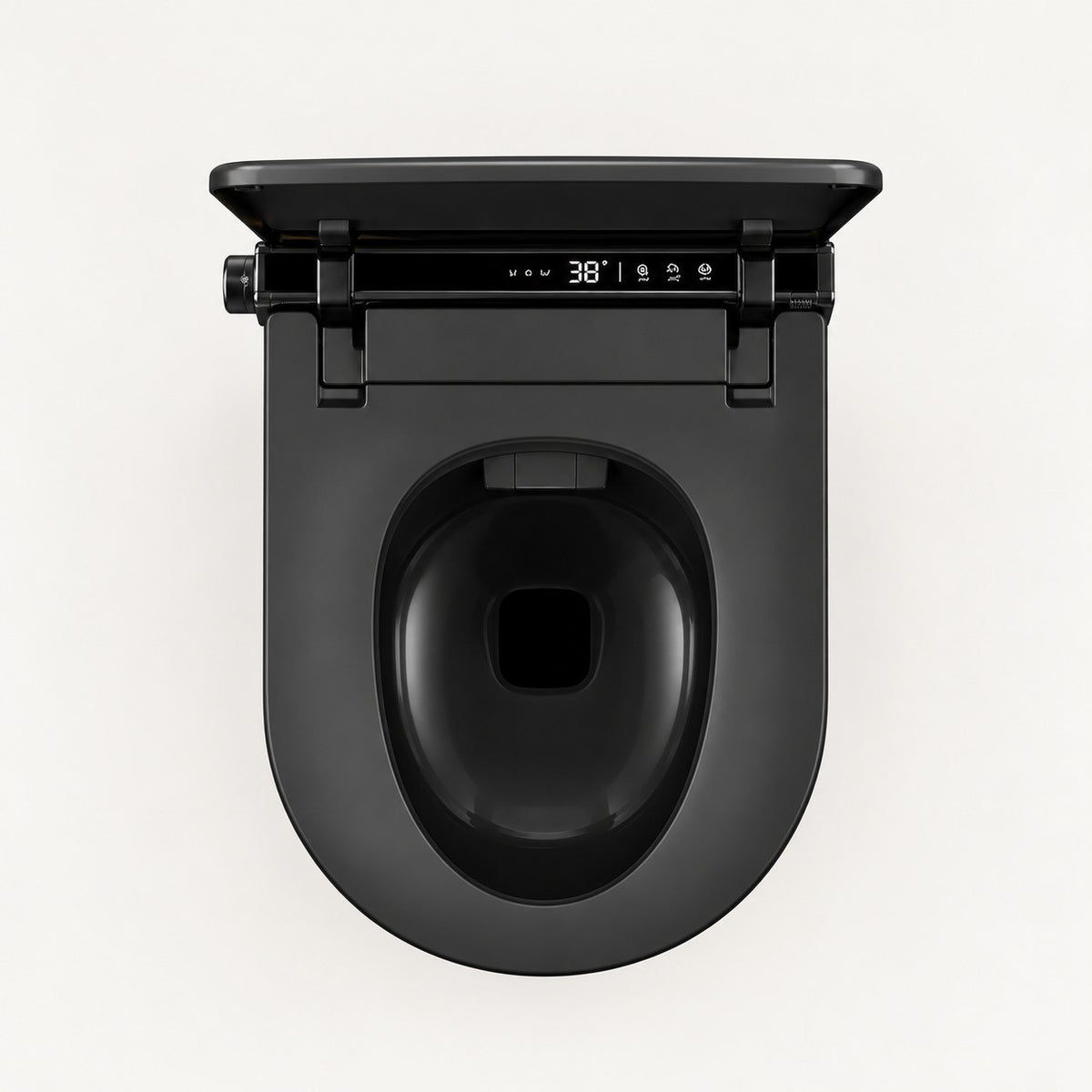

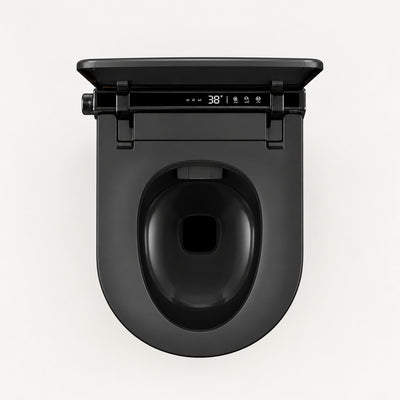

Product detail / Lid
Lid & seat
A radar sensor notices your approach and lifts the lid, then lowers it gently as you leave. The soft-close seat is heated and anti-bacterial.
Select a + marker on the image, or use the angle buttons.
02 / Discover the functions
Try it for yourself.
Tap a function and watch the demonstration on the screen. Nothing starts until you choose.
TRESANI · EXPERIENCEREADY
CONCEPT CONTROLS · NOT THE PHYSICAL REMOTE
Your discovery starts here.
Select one of the controls to learn what it does.
✳Illustrative experience. Images show selected viewpoints, not a continuous 360° model. Conceptual remote — not an exact device control layout, and not connected to any real device.Videos load only when a function is chosen. Until approved clips are added, the screen shows an illustrative image. This is not a working product simulator.
✦ For every feature, remote operation and installation detail, see the Obscur specification and documents further down this page.
Designed around the everyday
Intelligent beyond the surface.
AUTO OPEN/CLOSE LID
The toilet anticipates your arrival, automatically opening with laser motion detection for a touch-free welcome.
MULTIPLE CLEANING MODES
Warm-water cleansing with adjustable pressure, position and temperature, plus a gentler feminine wash.
HEATED SEAT
Gentle, customisable seat heating transforms cold mornings into moments of comfort.
WARM AIR DRYING
Gentle, adjustable air flow that leaves you feeling fresh and comfortable.
INSTANT HEATING
Unlimited warm water on demand, with no waiting or temperature fluctuation.
UV STERILISATION
When the lid closes, the built-in ultraviolet light is automatically activated to eliminate bacteria.
SPRAY WAND SELF-CLEANING
Automatic rinsing ensures the wand is perfectly hygienic before and after each use.
BUBBLE SHIELD WASH
Foam shield coats the bowl before and after use, keeping surfaces immaculate.
OFF-SEAT FLUSHING
Automatically flushes when you stand, ensuring effortless cleanliness without touching a thing.
FOOT SENSOR FLUSHING
A discreet sensor underneath the pan gives you a hands-free flush with a gentle move of the foot.
NIGHT LIGHTING
A discreet, ambient glow for ease of use in low light without disturbing the atmosphere.
BUILT-IN WATER TANK
An integrated tank gives a strong flush and steady wash, and works at low water pressure.
AUTO OPEN/CLOSE LID
The toilet anticipates your arrival, automatically opening with laser motion detection for a touch-free welcome.
MULTIPLE CLEANING MODES
Warm-water cleansing with adjustable pressure, position and temperature, plus a gentler feminine wash.
HEATED SEAT
Gentle, customisable seat heating transforms cold mornings into moments of comfort.
WARM AIR DRYING
Gentle, adjustable air flow that leaves you feeling fresh and comfortable.
INSTANT HEATING
Unlimited warm water on demand, with no waiting or temperature fluctuation.
UV STERILISATION
When the lid closes, the built-in ultraviolet light is automatically activated to eliminate bacteria.
SPRAY WAND SELF-CLEANING
Automatic rinsing ensures the wand is perfectly hygienic before and after each use.
BUBBLE SHIELD WASH
Foam shield coats the bowl before and after use, keeping surfaces immaculate.
OFF-SEAT FLUSHING
Automatically flushes when you stand, ensuring effortless cleanliness without touching a thing.
FOOT SENSOR FLUSHING
A discreet sensor underneath the pan gives you a hands-free flush with a gentle move of the foot.
NIGHT LIGHTING
A discreet, ambient glow for ease of use in low light without disturbing the atmosphere.
BUILT-IN WATER TANK
An integrated tank gives a strong flush and steady wash, and works at low water pressure.
‹›
swipe to explore
Cleansing
- Multiple cleaning modesRear and feminine wash, adjustable
- One-button spa mode
- Massage washPulsating water stream
- Child cleansing mode
Comfort
- Heated seatAdjustable temperature
- Warm-air dryingAdjustable temperature
- High-speed air drying
- Instant water heatingWarm water on demand
- Smart temperatureAdjusts water, seat and air to the season
- Infrared (IR) care lamp
- User memory
Hygiene
- UV sterilisationActivates when the lid closes
- Self-cleaning spray wandRinses before and after each use
- Bubble Shield foamCoats the bowl before use
- Anti-bacterial seat
- Charcoal-filter deodoriser
Convenience
- Automatic open / close lidMotion sensing
- Soft-close seat and lid
- Wireless remoteMagnetic, wall-mountable
- Illuminated side control dial
- LED displayWater, seat and air temperatures
- Night light
- Voice control
Flushing & water
- Automatic off-seat flush
- Smart flush
- Foot sensor flushSensor underneath the pan
- Rimless vortex flush3 / 6 litre dual flush
- Built-in water tankWorks at low water pressure
- Water filtration
Safety & efficiency
- Power-cut flushingBackup battery, up to 50 flushes
- Leakage protection
- Dry-burn protection
- High and low voltage protection
- High-temperature protection
- IPX4 water resistance
- Energy-saving and water-saving modes
Everything arrives together
Includedin the box.
-
Obscur smart toilet
-
Wall frame and fixings
-
Remote control assembly
-
Angle valve assembly
-
Battery backup unit
-
Installation manual
-
User guide
-
Clear plastic test plate
-
Lemon fragrance sticks
×5 -
Foam bubble bottle
-
Bubble tablets
×10
×5

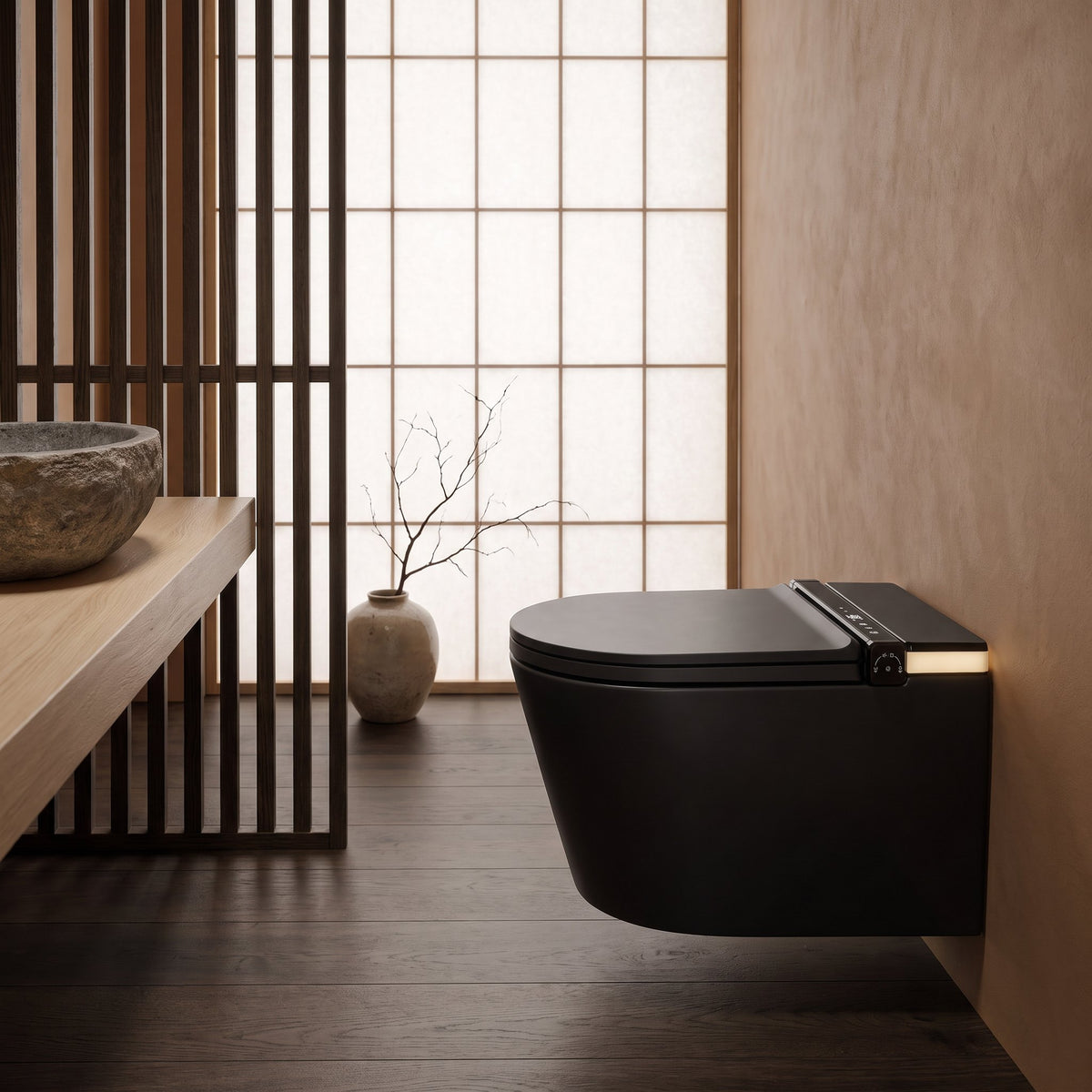

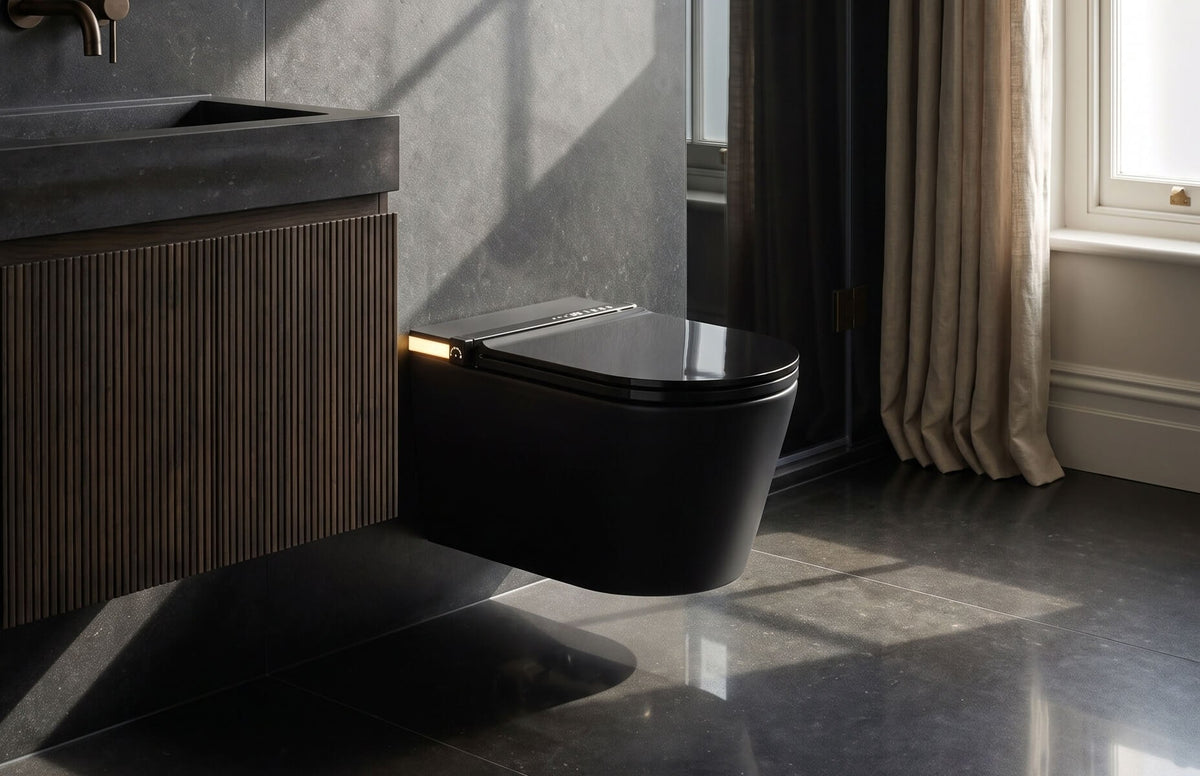

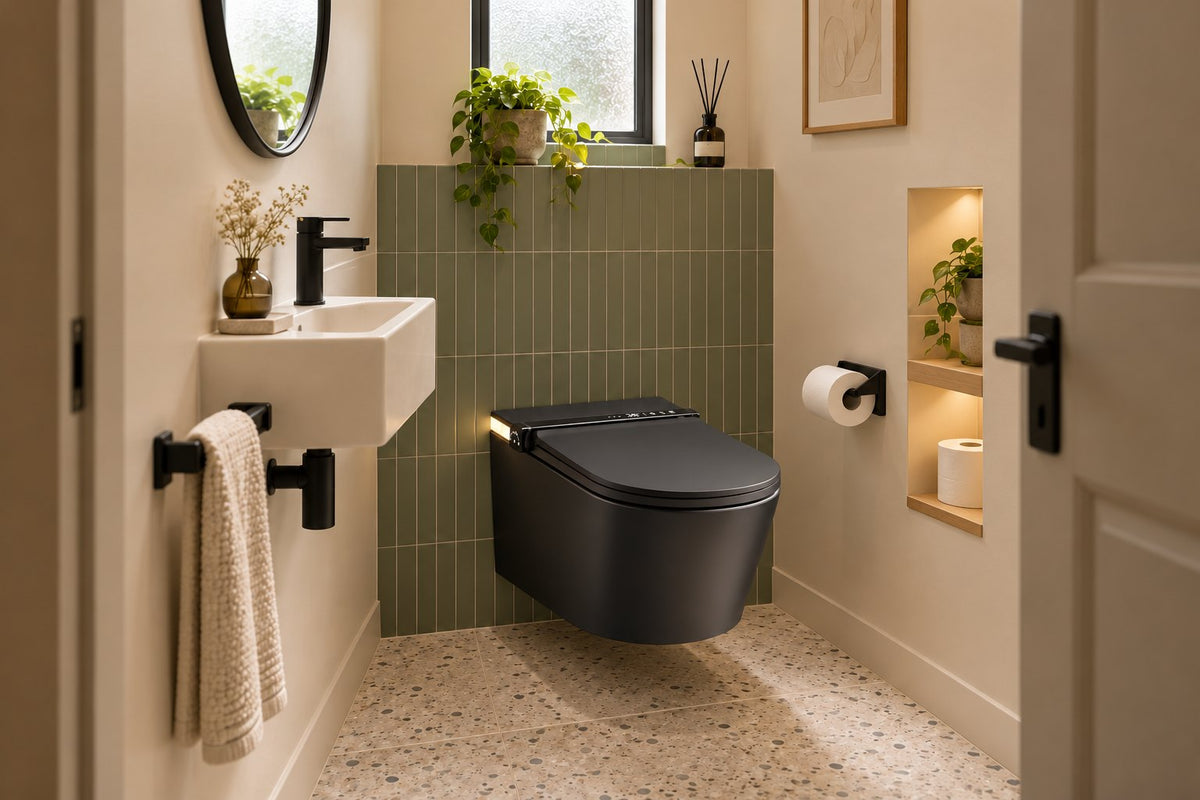

×10Obscur, three moods
A different kindof presence.
Watch how the same black silhouette changes the atmosphere of three distinct spaces.

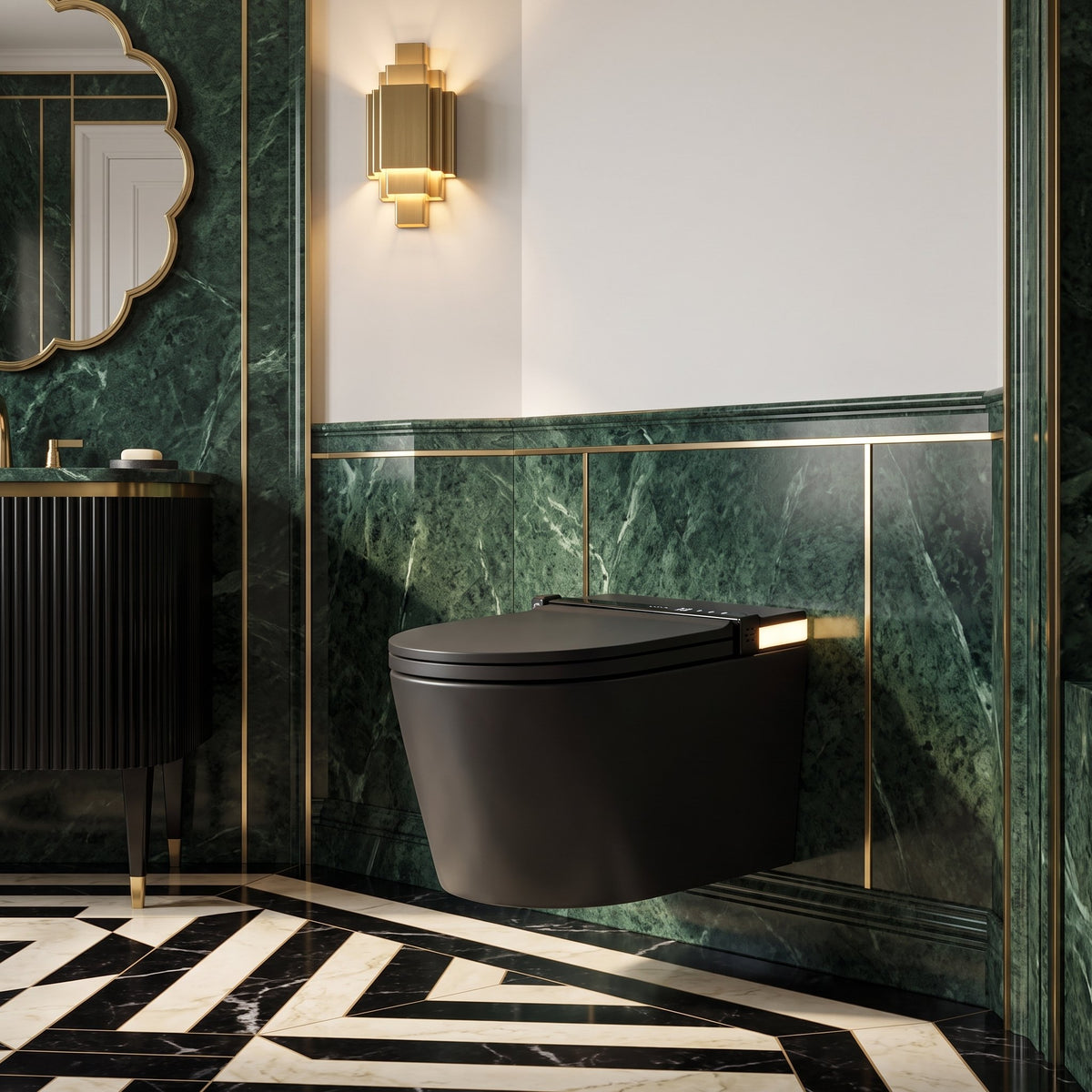

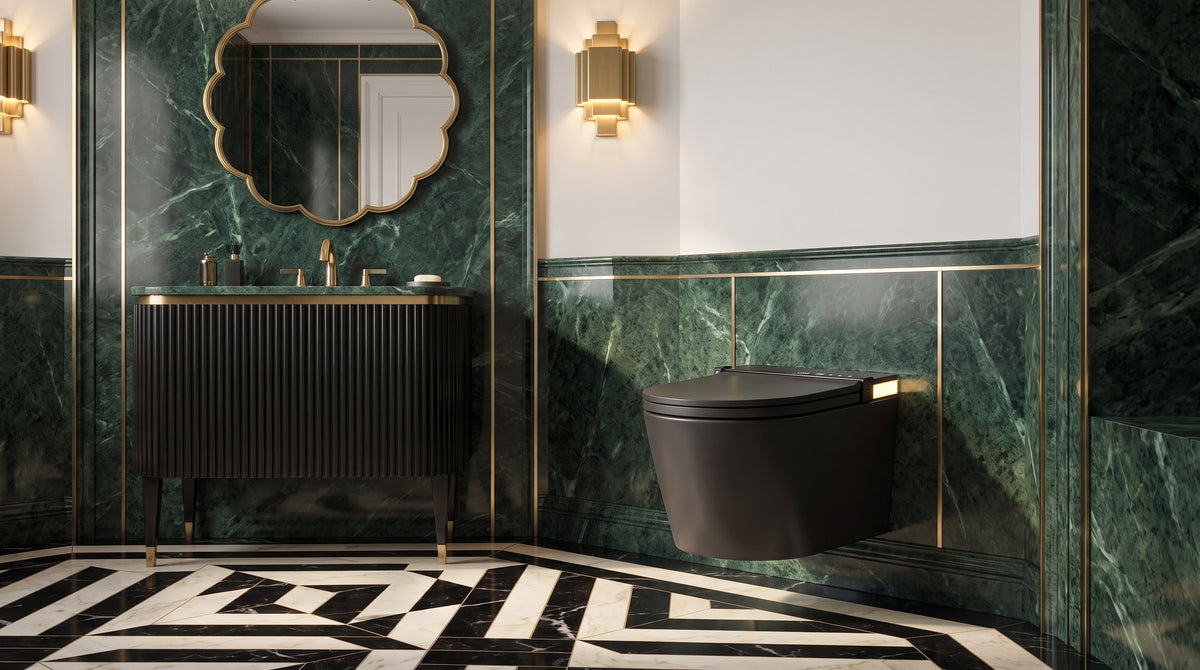

Art DecoMatt black that holds its own beside bold marble and brass
Before you choose

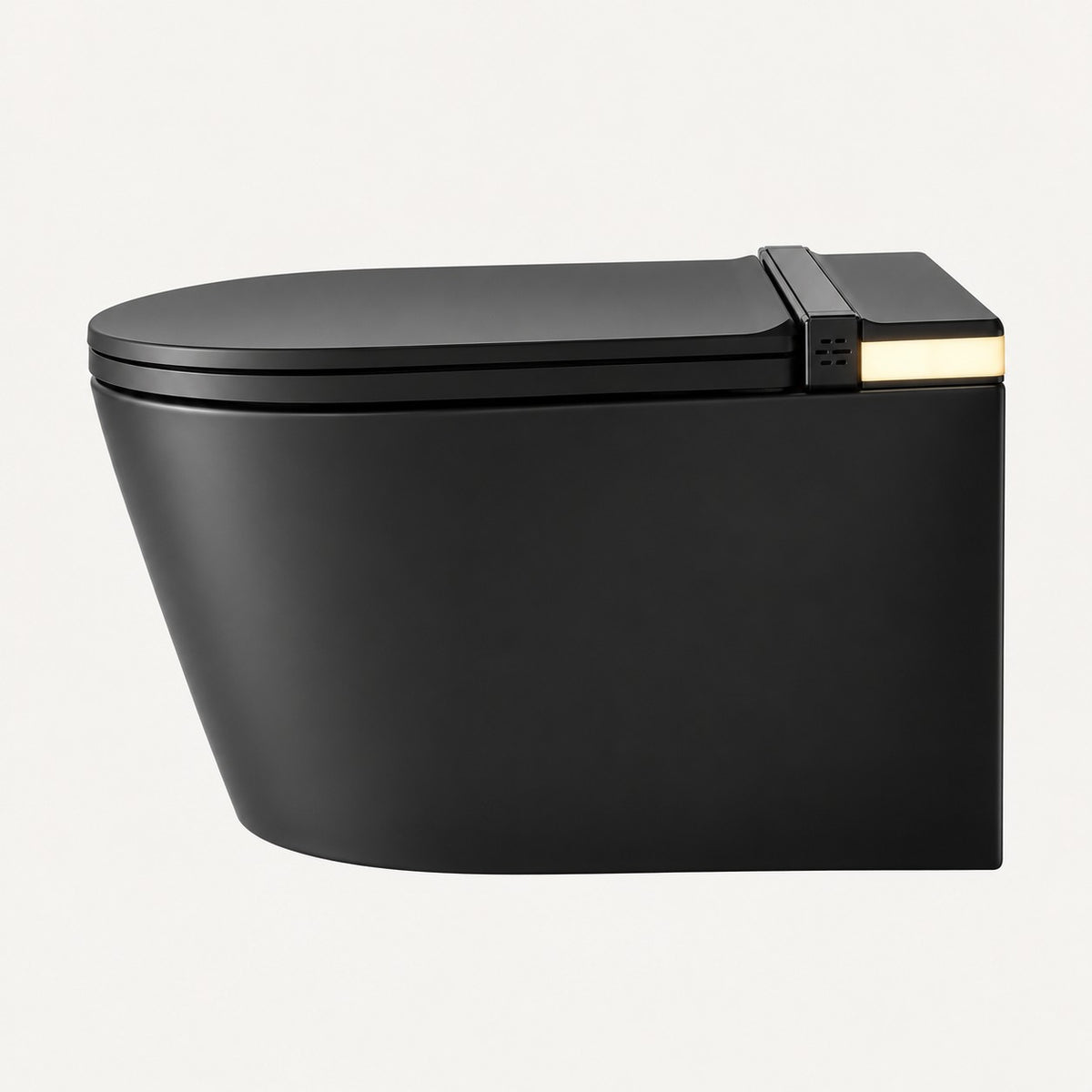

Designed to float.Planned to fit.
A floating form keeps the floor clear, but it needs the right wall support and services. Plan these early with your installer and Obscur will sit exactly where you want it.
01
Wall-hung structureA concealed steel frame and fixings are supplied. The frame sits inside a stud or boxed-in wall.
02
Waste, water & electricityP-trap waste through the wall, a nearby water supply and a fused spur fitted by an electrician. It is designed to work at low water pressure.
03
Your preferred seat heightSet when the frame goes in, up to 560 mm from floor to pan.
04
Kerbside pallet deliveryAround 50 kg on a pallet, so two people are needed to take delivery.
After you order
Delivered, fitted,enjoyed.
- 01Delivered to you
Free UK mainland delivery, kerbside on a pallet. At around 50 kg, two people are needed to take delivery.
- 02Everything together
The concealed frame, the toilet and every fitting arrive together, so your installer has it all from day one.
- 03Fitted by your installer
The frame suits a stud or boxed-in wall. Jason, our in-house plumber, is on hand for your installer's questions.
- 04Yours to enjoy
30-day returns, a lifetime ceramic guarantee and two years on parts and electronics.
No guesswork
Beauty is inthe detail.
The essential answers live right here, with full drawings and installation guidance one click away.
Dimensions & installation
- Product format
- Wall-hung smart toilet
- Finish
- Matt black
- Projection
- 550 mm
- Width
- 385 mm (400 mm including the side dial)
- Height
- 355 mm
- Height with lid open
- 794 mm
- Seat
- 420 × 370 mm, opening 300 × 221 mm
- Bowl, inside
- 330 × 280 mm
- Seat height
- Set at installation, up to 560 mm floor to pan
- Pan weight
- 42 kg
- Frame
- Concealed steel frame, supplied
- Frame size
- W 400 × D 40 mm, height 325–560 mm
Water & flushing
- Water supply
- Built-in tank, works at low water pressure
- Flush
- Rimless vortex, with smart flush
- Flush volume
- 3 / 6 litres
- Waste outlet
- P-trap, horizontal through the wall
- Power cut
- Backup battery, up to 50 flushes
Electrical & controls
- Voltage
- 220 V
- Power cable
- 1.5 m with UK plug
- Connection
- Fused spur, by a qualified electrician
- Controls
- Illuminated side dial, wireless remote, foot sensor
- Water resistance
- IPX4
Comfort & hygiene
- Warm-water rear and feminine wash
- Adjustable heated seat
- Warm-air drying, with a high-speed setting
- One-button spa mode
- Automatic open / close lid
- UV sterilisation
- Self-cleaning spray wand
- Bubble Shield foam
- Charcoal-filter deodoriser
- Night light
Safety
- Power-off flushing
- High and low voltage protection
- Leakage protection
- Dry-burn protection
- High-temperature protection
- Water filtration
Warranty & delivery
- Ceramic
- Lifetime guarantee
- Parts & electronics
- 2 years
- Delivery
- Free UK mainland, kerbside by pallet
- Handling
- Around 50 kg, two people needed
Technical drawings
All dimensions in millimetres, from the manufacturer’s drawings.
Tresani
ModelObscur
FinishMatt black
UnitsMillimetres
Views8, common scale
Sheet01 of 01
Your project, well supported
Everything in one place.
Installation & frame guidance
First-fix, frame drawings and electrical information
Questions, answered with care
The practicalside of lovely.
Beautiful should never mean complicated. Here are the answers to the questions that matter most.
Ask a different questionDoes Obscur need a wall-hung support frame?
Yes. A concealed steel frame and fixings are supplied in the box. The frame sits inside a stud or boxed-in wall, and your installer sets the seat height when it goes in.
Will Obscur fit my bathroom?
Obscur projects 550 mm from the finished wall, with the waste leaving horizontally through the wall (P-trap). Our two-minute fit check gives you a quick answer, or send Jason a photo and he'll confirm.
Do I need a professional to install it?
Yes. A qualified plumber fits the frame, water supply and waste, and a qualified electrician fits the fused spur. The installation guidance and frame drawings are in the documents above.
Will it work with my water pressure?
Obscur has a built-in water tank and is designed to work at low water pressure, so the flush and the warm-water wash stay consistent. If your supply is unusual, Jason can check it with you.
What happens in a power cut?
A backup battery keeps Obscur flushing, for up to 50 flushes, until the power returns.
How is Obscur different from other Tresani models?
Obscur pairs the full Japanese-style feature set with a dramatic matt black finish, an illuminated side control and a charcoal-filter deodoriser, a first for the Tresani range.
What warranty does Obscur have?
A lifetime guarantee on the ceramic and two years on parts and electronics.
Confidence comes from real people
Bold design.Human support.
For plans, installation questions and practical advice, Jason, our in-house plumber, can help you work through the details.
Talk to TresaniA note about reviews
The first stories are still to come.
Obscur is newly arrived, so there are no model-specific reviews yet. Genuine reviews will appear here as soon as our first owners share them.
Two sides of the same story
Same intelligence.Different energy.
Clair and Obscur express the same architectural idea in two contrasting finishes. Follow the light, or embrace the dark.
